C-Silver high-voltage lifepo4 battery energy system with battery management system(BMS) is compatible with our three phase hybrid solar inverter (20KW-60KW) for small C&I energy storage systems. Easy to install and dispatch, can meet different power storage requirements.

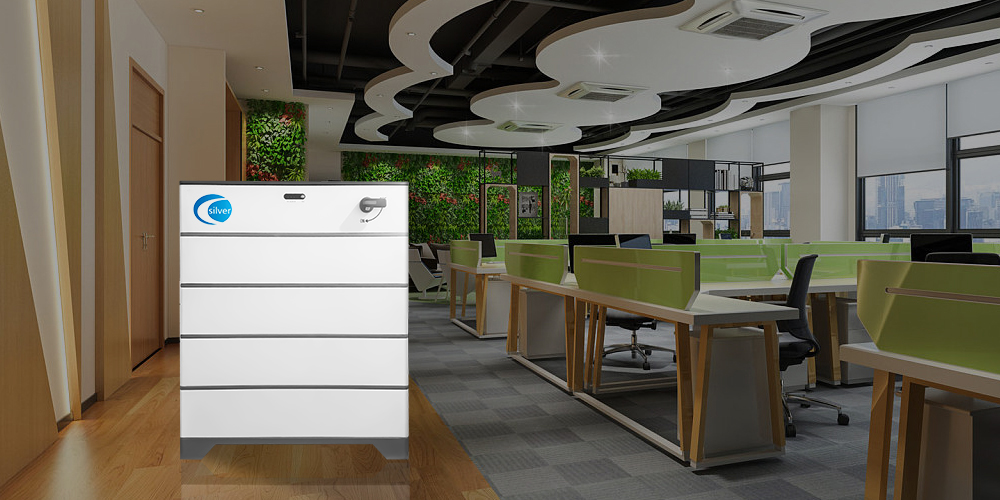

Stackable design, the battery capacity can be increased freely and flexibly according to the situation of commercial and office use. The battery cell used is the best-safety BYD LiFePO4 battery (blade cell) to save costs and reach high efficiency.
Category：Residential Energy Storage Systems, solar battery storage, solar panel battery storage, solar battery for commercial, LFP battery, High Voltage battery,BYD battery
● High-voltage LiFePO4 battery module, single layer is 102.4V 120Ah.
● Modular design simplifies transport and installation.
● 1 to 7 layers recommended.
● Support max. 5sets in parallel
● BYD blade battery cell (LFP), vehicle grade : more safety, longer life cycle，more usable energy
● life up to 15 years
● Good temperature performance, charge @ -20℃-﹢56℃, discharge @ -30℃-﹢60℃
● BYD BMS protection
● Compatible with 380V 3phase 8KW/10KW/12KW/15KW-60KW inverter.
● Compatible with CAN / RS485 communication interface.
● Applicable on off-Grid or hybrid solar energy storage system.
| Model | SNE102.4BL-1LFP | SNE204.8BL-2LFP | SNE307.2BL-3LFP | SNE409.6BL-4LFP | SNE512.0BL-5LFP |
| Performance | |||||
| Battery type | Lithium-iron phosphate (LiFePO4) | ||||
| Nominal battery energy(KWH) | 13.312KWH | 26.624KWH | 39.936KWH | 53.248KWH | 66.56KWH |
| Nominal capacity(AH) | 130AH | ||||
| Nominal voltage(V) | 102.4V | 204.8V | 307.2V | 409.6V | 512.0V |
| Operating voltage Range(V) | 86.4V～115.2V | 172.8V～230.4V | 259.2~345.6V | 345.6V～406.8V | 432V～576V |
| Stacking layer number | 1 | 2 | 3 | 4 | 5 |
| Module number | 2 | 4 | 6 | 8 | 10 |
| Standard charging current(A) | 30A @ 25°C | ||||
| Max. constant charging current(A) | 100A @ 25°C | ||||
| Standard discharging current(A) | 60A @ 25°C | ||||
| Max. constant discharging current(A) | 100A @ 25°C | ||||
| Cell technology | BYD Blade Lithium-iron phosphate (LiFePO4) | ||||
| Depth of discharge(DOD) | 80% | ||||
| Design life | ＞5000 times @80%DOD | ||||
| Warranty | 5 years | ||||
| Warranty Document Supplied | Yes | ||||
| Compatible hybrid inverters | High voltage hybrid inverters | ||||
| Protection function | |||||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | ||||
| Communication | |||||
| Communication | CAN/RS485 | ||||
| General Specification | |||||
| Dimension (L*W*H)(MM) | 1120*420*57(mm) 44.09*16.54*22.4(inch) | 1120*420*800(mm) 44.09*16.54**31.5(inch) | 1120*420*1030(mm) 44.09*16.54*40.55(inch) | 1120*420*1260(mm) 44.09*16.54*49.61(inch) | 1120*420*1490(mm) 44.09*16.54*58.66 (inch) |
| Weight(KG) | 184.28kg (406.26 lb) | 314.38kg (693.11 lb) | 444.48kg (979.95lb) | 574.58kg （1266.78 lb) | 704.68kg (1553.60 lb) |
| Shipping state voltage(V) | 3.20~3.30V/CELL | ||||
| Shipping status SOC | 20%~30% | ||||
| Charging temperature | 0~+55℃(32°F-131°F) | ||||
| Discharging temperature | -30~+60℃ (-22°F-140°F) | ||||
| Short term storage ambient temperature | -20~+35℃(<3 months, SOC: 20%~60%) | ||||
| Long term storage ambient temperature | -20 ~+30℃(<1 year, SOC: 30%~60%) | ||||
| Max. operating altitude | 4,000m(Derating above 2,000m) | ||||
| Protection degree | IP21, indoor installation | ||||
| Relative humidity | 5%-95% | ||||
| Cooling | Natural convection | ||||
| Noise emission | <29 dB | ||||
| Certification | TUV/CE/IEC/UN38.3/UL1973 | ||||
