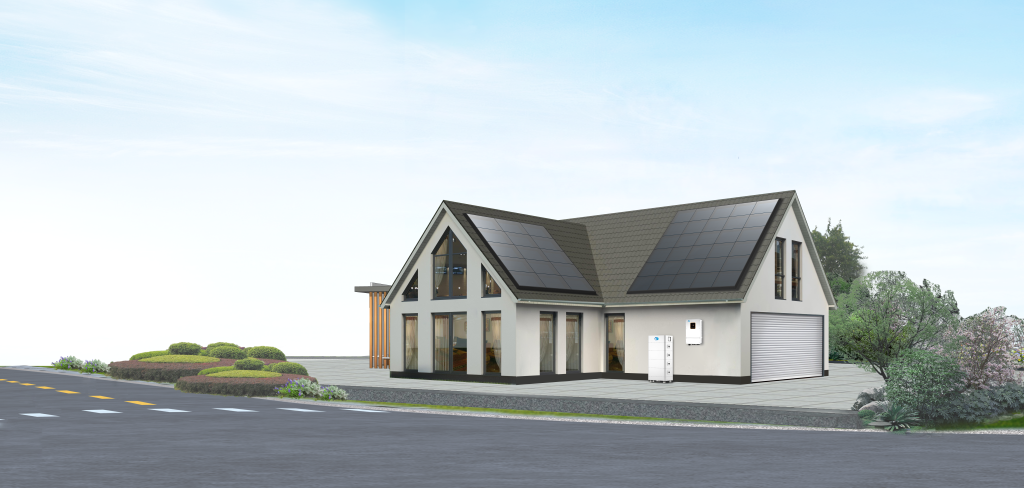

The 13.312/19.968/26.624/33.28/39.936KWH residential battery storage system is an intelligent HV solar rechargeable battery unit that enables homeowners to store electricity generated by the residential solar power system or grid for emergency battery power supply for homes.
The excess electricity will be stored and provided when needed. SNE1228/1843/2457BL-LFP uses the BYD vehicle grade (LFP) battery, which has safer and more efficient performance. And we will help you design your own battery appearance with BYD original technical solutions. The product stackable design and easy installation.
Category：Residential Energy Storage Systems,solar battery storage, solar panel battery storage, solar batteries for home, electricity store, byd,LFP battery,high voltage battery
●High-voltage LiFePO4 battery module;
●Single module is 51.2V 130Ah;
●Stackable design and easy installation
●High-voltage LiFePO4 battery module;
●Single module is 51.2V 130Ah;
●Stackable design and easy installation;
●BYD vehicle grade (LFP) battery: more safety, longer life cycle;
●More Usable Energy life up to 10 years;
●Applicable for residential and commercial system applications;
●Flexible Scalable from 13 to 40 KWH；
●Matching with leading inverter brands;
●Compatible with CAN / RS485 communication interface;
●Applicable on grid or hybrid on and off-grid solar energy storage system
| Model | SNE1228BL-LFP | SNE1843BL-LFP | SNE2457BL-LFP | SNE3072BL-LFP | SNE3686BL-LFP |
| Performance | |||||
| Battery type | Iithium-iron phosphate (LiFePO4) | ||||
| Nominal Battery Energy(KWH) | 13.312KWH | 19.968KWH | 26.624KWH | 33.28KWH | 39.936KWH |
| Nominal Capacity | 130AH | ||||
| Nominal Voltage(V) | 102.4V | 153.6V | 204.8V | 256V | 307.2V |
| Operating Voltage Range(V) | 90V～114V | 129.6V～168.48V | 180V～228V | 225V～285V | 270V～342V |
| Module Number | 2 | 3 | 4 | ||
| Standard charging current(A) | 60A @ 25°C | ||||
| Max. constant charging current(A) | 65A @ 25°C | ||||
| Standard discharging current(A) | 60A @ 25°C | ||||
| Max. discharging current(A) | 65A @ 25°C | ||||
| Cell technology | BYD Blade Lithium-iron phosphate (LiFePO4) | ||||
| Depth of discharge(DOD) | 80% | ||||
| Design life | 5000 times @80%DOD | ||||
| Warranty | 5 years | ||||
| Warranty Document Supplied | Yes | ||||
| Compatible hybrid inverters | SNE6K-GA/SNE8K-GA/SNE10K-GA/SNE12K-GA or other hybrid inverters | ||||
| Protection function | |||||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | ||||
| Display and Communication | |||||
| Display | The information of Battery, such as SOC, battery voltage and so on | ||||
| Communication | CAN/RS485 | ||||
| General Specification | |||||
| Domension (L*W*H)(MM) | 1150*220*845MM | 1150*220*1070MM | 1150*220*1295MM | 1150*220*1520MM | 1150*220*1745MM |
| Weight(KG) | 184.2KG | 259.6KG | 334.8KG | 485.4kg | 636.1KG |
| Shipping state voltage(V) | 3.20~3.30V/CELL | ||||
| Shipping status SOC | 20%~40% | ||||
| Charging Temperature | 0~+50℃ | ||||
| Discharging Temperature | -30C~60°C (-22°F-140°F) | ||||
| Short term storage ambient temperature | -10~+55℃(<3 months, SOC: 20%~60%) | ||||
| Long term storage ambient temperature | -10 ~+40℃(<1 year, SOC: 30%~60%) | ||||
| Max. operating altitude | 4,000m(Derating above 2,000m) | ||||
| Protection degree | IP21, indoor installation | ||||
| Relative humidity | 5%-95% | ||||
| Cooling | Natural convection | ||||
| Noise emission | <29 dB | ||||
| Certification | TUV/CE/IEC/UN38.3/UL1973 | ||||
