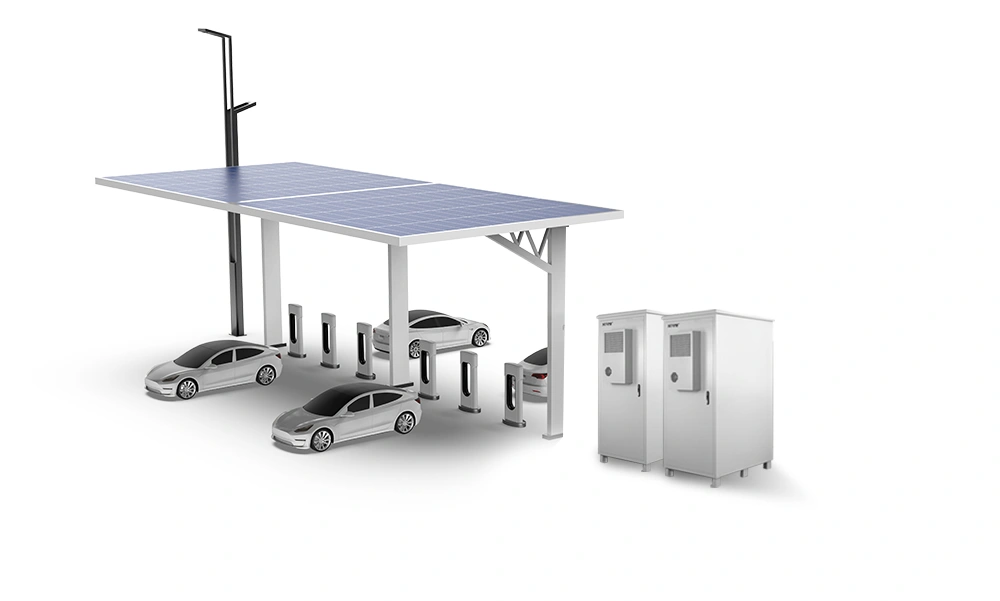

20KW/30KW/50KW/60KW / 53KWH-173KWH outdoor all-in-one ESS solution with built-in 53KWH to 173KWH lithium battery storage, which used BYD blade LiFePO4 battery module and original BYD high voltage control box, comes with a 20-60KW stable hybrid inverter.
It is ready to install and use, no complicated installation, and supports RS485/CAN communication. The clean solar energy is the best choice for small-scale industrial and commercial use and electricity store, and saves high electricity bills.
It is suitable for nomadic farms, offices, factories, scholols, micro-grid areas etc.
Commercial&Industrial Energy Storage System, electricity store, BYD blade cell, LFP battery, outdoor cabinet, inverter solar, solar systems, PV inverter
●Integrate PV, PCS and LiFePO4 Battery in one cabinet, support multiple battery access, and integrate EMS smart energy management system
●Modular design, power and capacity can be expanded
●With grid-connected charging and discharging, off-grid independent inverter function
●Communication is flexible, can accept BMS instructions in real time, communication methods are RS485, CAN
●BYD vehicle grade battery cell (LFP), more safety, longer life cycle, more usable energy
●BYD original BMS protection
●Built-in fire control, temperature control and warning system function for multiple security
●Multiple protection functions: low voltage, over-voltage, overcharging, over discharge protection, etc.
●5-Year warranty, more than10-Year design life(6000 cycles)
●Reducing the maximum demand electricity cost, with considerable economic benefits
●Pre-assembled in the factory, simple operation, compatible with CAN / RS485 communication interface
●Applicable on hybrid and off-grid solar energy storage system
●Enable future expansion and provide higher power supply reliability and system redundancy
| Model | SNE-ESS20K | SNE-ESS30K | SNE-ESS40K | SNE-ESS50K | SNE-ESS60K |
| DC Input | |||||
| Max. power(KW) | 26KW | 36KW | 48KW | 60KW | 72KW |
| Max. DC votageM | 1000V | ||||
| MPPT vdtage range(M) | 180V-900V/630V | ||||
| MPPT operaing vallage range at raled power | 300V-900V | 300V-900V | 400V-900V | 400V-900V | 450V-900V |
| MPPT tracker/stings | 22 | 2/22 | 2/2/2 | 2/2/2/2 | 2/2/2/2 |
| Max.input current of single MPPT(A) | 23A*2 | 36A*3 | 36A*3 | 36A*4 | 36A*4 |
| Shor-circuit current of PV input(A) | 32A/32A | 42A/42A/42A | 42A/42A/42A | 42A/42A/42A/42A | 42A/42A/42A/42A |
| AC Output | |||||
| Rated output power(KW) | 20KW | 30KW | 40KW | 50KW | 60KW |
| Max. apparent AC power(KVA) | 20KVA | 30KVA | 40KVA | 50KVA | 60KV4 |
| Max. output current(A) | 31A | 45A | 60A | 75A | 87A |
| Grid voltage/range(V) | 380V,3L+N+PE | 400V,3L+N+PE | |||
| Frequengy (Hz) | 5060Hz | ||||
| PF | 1(0.8lagging-O.&leading) | ||||
| THDI | 3% | ||||
| Battery | |||||
| Battery capacity(KWH) | 53KWH-173KWH | ||||
| Battery type | UiFePO4 battery | ||||
| Battery Modue | 51.2V 130AH BYD blade battery modue | ||||
| Number of batlery racks | 1-2 | ||||
| Battery vatage range(M) | 180V~700V | 220V~800V | |||
| Max. input/output vatage(M | 700V | 800V | |||
| Rated charge/discharge current(A) | 50A | 100A | 100A | 100A | 100A |
| Max, input/output power(KW) | 20KW | 30KW | 40KW | 50KW | 60KW |
| EPS Output | |||||
| Rated output power(KW) | 20KW | 30KW | 40KW | 50KW | 60KW |
| Max.Apparent AC power(KVA) | 20KVA | 30KVA | 40KVA | 50KVA | 60KVA |
| Max. singke-phase apparent output power | 66KVA | 10KVA | 13KVA | 17KVA | 20KVA |
| Rated output voltage(V) | 380V,3L+N+PE | 400V,3L+N+PE | |||
| Rated output current(A) | 31A | 45A | 60A | 75A | 87A |
| Rated frequency (Hz) | 50Hz/60Hz | ||||
| Automa ic swiching time (ms) | <10ms | ||||
| THDU | <3% | ||||
| Overload capacity | 110%,30S/120%,10S/150%,0.02S | ||||
| Protection Parameters | |||||
| AC over current protecson | Yes | ||||
| Ground faut detection protecion | Yes | ||||
| Power grid morioning prolection | Yes | ||||
| Residual current detection protedion | Yes | ||||
| General Data | |||||
| Euro Effikieny | >98.2% | ||||
| Noise Emission (Typical) | <45dB | ||||
| Operation Temperature | -25~+60℃ | ||||
| Relative Humicity | 5~90%(non-condensing) | ||||
| AHiude | 4000m(>2.000 Derating) | ||||
| Dimensions (W/D/H) mm | 1000*1650*2050 | ||||
| Weight(kg) | Customizason | ||||
| Inverier Topology | transformerless | ||||
| Self-Consumpion | <3W | ||||
| Ingress protection | IP54 | ||||
| Fire extinguishing system | Opional | ||||
| Operating temperature | -30℃~55℃ | ||||
| PCS cooing way | Intehigent Fan | ||||
| Battlery codling way | Air condioning cocing | ||||
| Display and Communication | |||||
| Display | LCD | ||||
| Interface RS485/WFVGPRS | yes /optiopt | ||||
