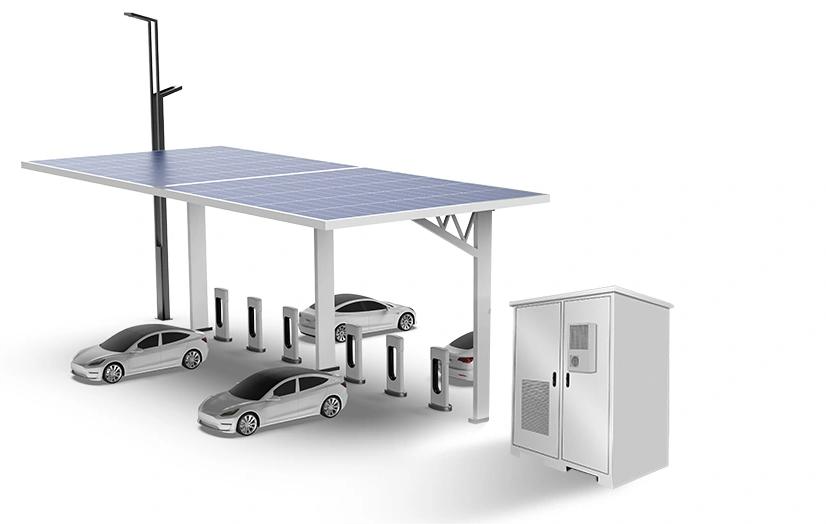

Commercial&Industrial Energy Storage Inverter; electricity store, BYD blade cell, LFP battery, outdoor cabinet.
●Simple structure, small footprint, flexible layout
●Easy installation, operation and maintenance
●Modular design, power and capacity can be expanded
●BYD vehicle grade battery cell (LFP), more safety, longer life cycle, more usable energy
●BYD original BMS protection
●Built-in fire control, temperature control and warning system function for multiple security
●Multiple protection functions: low voltage, over-voltage, overcharging, over discharge protection, etc.
●5-Year warranty, more than10-Year design life(6000 cycles)
●Reducing the maximum demand electricity cost, with considerable economic benefits
●Pre-assembled in the factory, simple operation, compatible with CAN / RS485 communication interface
●Applicable on hybrid and off-grid solar energy storage system
●Enable future expansion and provide higher power supply reliability and system redundancy
| Model | SNE116LFP | SNE206LFP |
| Performance | ||
| Battery type | Lithium-iron phosphate (LiFePO4) | Lithium-iron phosphate (LiFePO4) |
| Nominal battery energy(KWH) | 116.736KWH | 206KWH |
| Nominal capacity(AH) | 190AH | 310AH |
| Nominal voltage(V) | 614.4V | 665.6V |
| Operating voltage Range(V) | 480V~ 700.8V | 561.6V~ 790.4V |
| Module number | 24 | 26 |
| Standard charging current(A) | Rated current 80A | Rated current 102A |
| Max. constant charging current(A) | 100A | 155A |
| Standard discharging current(A) | Rated current 90A | Rated current 102A |
| Max. constant discharging current(A) | 100A | 310A |
| Cell technology | BYD vehicle grade Lithium-iron phosphate (LiFePO4) | |
| Depth of discharge(DOD) | 80% | |
| Design life | ＞5000 times @80%DOD | |
| Warranty | 5 years | |
| Warranty Document Supplied | Yes | |
| Compatible hybrid inverters | 30/50KW/100KW C&I Energy storage inverters | 100/150KW C&I Energy storage inverters |
| Protection function | ||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | |
| Communication | ||
| Communication | CAN/RS485 | |
| General Specification | ||
| Dimension (L*W*H)(MM) | 1550*700*2150 | 1950*1000*2180 |
| Weight(KG) | customization | |
| Cabinet color | white | |
| Fire extinguishing system | support | |
| Air conditioner system | support | |
| Shipping status | SOC: 30%~40% | |
| Charging temperature | -10~+40C | 0~+50C |
| Discharging temperature | -20 ~+40C | -20 ~+55C |
| Short term storage ambient temperature | -28~+40C(<3 months,SOC: 20%~50% SOC） | -10~+45C(<3 months,SOC: 20%~60% SOC） |
| Long term storage ambient temperature | -20~+40C(1 year, SOC: 20%~50% SOC） | -10~+35C(1 year, SOC: 30%~60% SOC） |
| Max. operating altitude | 4,000m(Derating above 2,000m) | 4,000m(Derating above 2,000m) |
| Protection degree | IP54 | |
| Relative humidity | 5%-95% | |
| Battery cooling way | Air conditioning cooling | |
| Certification | TUV/CE/IEC/UN38.3/UL1973 | |
