SNE-ESS105KR215C-YL outdoor all-in-one ESS solution compatible with lithium battery storage, which used safe liquid cooling battery module and comes with SNE 105KW energy storage inverter.
Easy to install and dispatch, with built-in FSS (optional), and could be used in parallel. It is a compact and flexible ESS on the characteristics of small C&I loads.
The system integrates core parts such as the battery storage system, PCS，STS, fire extinguishing system, temperature control systems, and EMS systems in one cabinet.

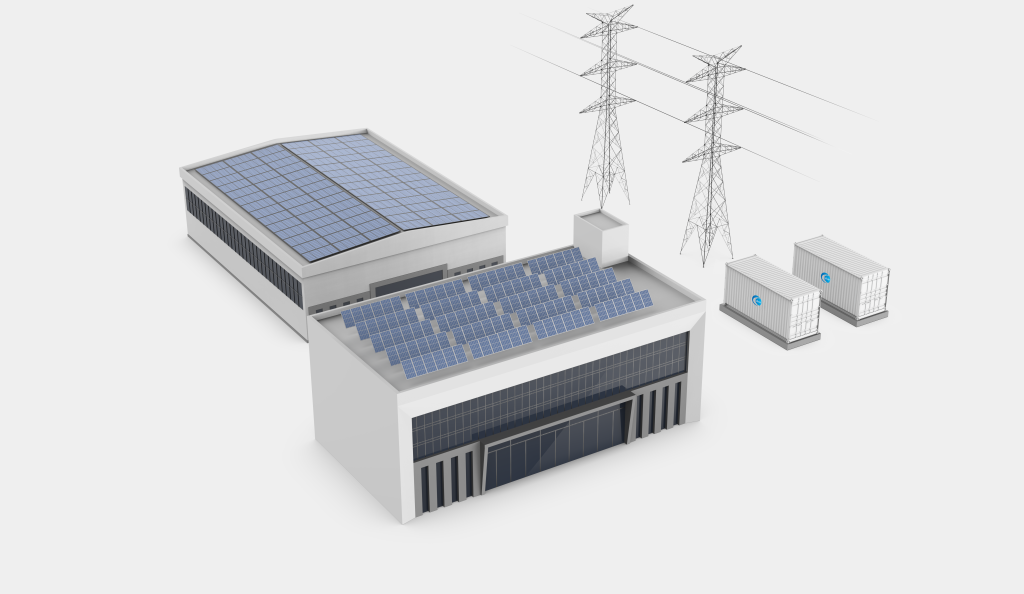

The energy solution is the best choice for small-scale industrial and commercial use and electricity store, and saves high electricity bills.
Category：C&I Energy Storage System, electricity store, BYD blade cell, LFP battery, outdoor cabinet, inverter solar, solar systems
●Integrate PCS, EMS and LiFePO4 Battery in one cabinet;
●Communication is flexible, can accept BMS instructions in real time, communication methods are RS485, CAN;
●Simple structure, small footprint, flexible layout, easy installation operation and maintenance;
●Modular design, power and capacity can be expanded;
●Use of high performance DSP, optimized control circuit design, better performance, more stable and safe system;
●Full new liquid-cooling LiFePO4 battery, more safety, longer life cycle, more usable energy;
●Built-in fire control, temperature control and warning system function for multiple security;
●With grid-connected charging and discharging, off-grid independent inverter function;
●The highest efficient power density, max. efficiency is 98.5%;
●Low power consumption safer liquid cooling system;
●IP54 protection grade, stronger environmental adaptability;
| Model | SNE-ESS105KR215C |
| Battery Input | |
| Battery type | Lithium Iron Phosphate(LiFePO4) |
| Battery Module | 153.6V 280AH Lithium Liquid Cooling Battery Module |
| Battery Capacity(KWH) | 215KWH |
| Nominal Voltage(V) | 768V |
| Battery Voltage Range(V) | 648V-912V |
| Number of Battery Clusters | 1 |
| Standard Charge/Discharge Current (A) | 140A |
| Max. Charge Current/Discharge Current (A) | 160A |
| AC Output | |
| Rated Output Power(KW) | 105KW |
| Max. Apparent Power(kVA) | 115.5KW |
| Max. Output Current(A) | 167A |
| Grid Voltage/Range(V) | 230V/400V, 230/400, (3W+PE) 3 P3W/(3W+N+PE)3 P4W |
| Frequency (Hz) | 50 /60Hz |
| Overload Capacity（AC） | 110%，Long-term |
| PF | 1 Lagging-1 Leading |
| THDI | ＜3%（Rated Power） |
| Protection | |
| Anti-island Protection | Yes |
| DC Reverse Connection Protection | Yes |
| DC Surge Protection | Yes |
| AC Surge Protection | Yes |
| AC Overcurrent Protection | Yes |
| AC Short-circuit Protection | Yes |
| AC Overvoltage Protection | Yes |
| General Data | |
| Euro Efficiency | 0.97 |
| Max Efficiency | 0.985 |
| Relative Humidity | 5 ~95% （Non-condensing） |
| Altitude | 5000m (>3000m derated) |
| Dimensions (W/D/H) mm | 1273*1078*2119 |
| Weight(KG) | About 2000KG |
| Inverter Topology | Transformerless |
| Ingress Protection | IP54 |
| Fire Extinguishing System | Support |
| Operating Temperature | -30℃~55℃ |
| PCS Cooling Way | Air Cooling |
| Battery Cooling Way | Liquid Cooling |
| Display and Communication | |
| Standard | |
| Inverter Grid Regulation | EN IEC 61000-6-2:2019/2016, EN IEC 62109-6-4:2019/2018, NRS097, G99,EN50549 |
| Battery Standards | UN38.3/MSDS/IEC62619/CE |
